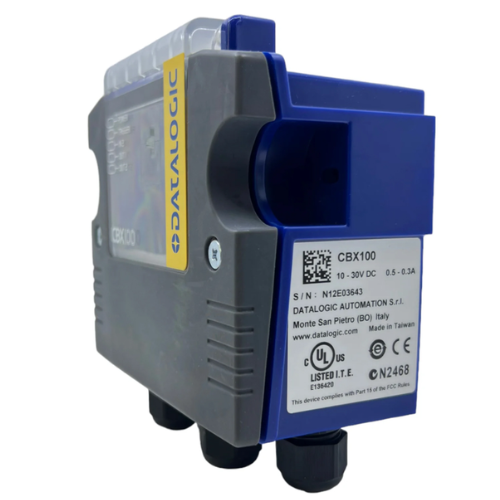

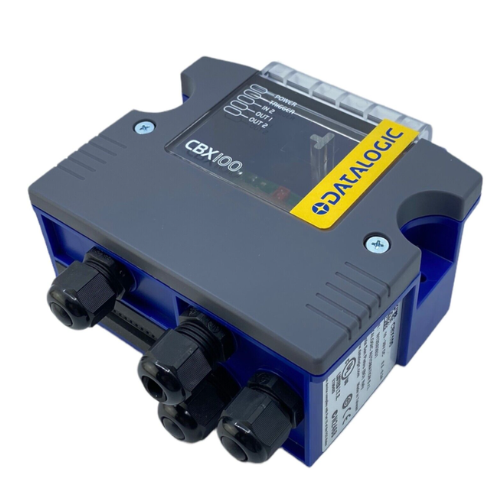

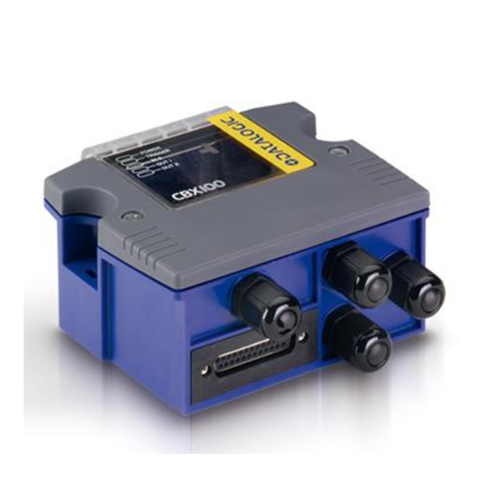

Datalogic CBX100 Connectivity Device
- Cost-effective with low ownership costs
- Ease of installation with accessible mounting options
- Simplified wiring through standard pinouts and spring clamps
- Reliable Backup and Restore feature for quick replacements
- Open architecture supporting common networks like Ethernet TCP/IP and Profibus
- Multilanguage Display for efficient monitoring and troubleshooting
- Visible Power and I/O indicators with a convenient power switch
Dispatch Details
– Ready to Dispatch in 1-7 Business Days
– Standard Shipping
– EMI Facility Available
Call for Price 99148 06616
CBX100 is used for connecting simple cabling reader devices, high performance modular industrial devices, or serial devices to multiple Fieldbus systems.
The CBX100 is a connectivity device designed to simplify and speed up cabling operations during the installation of Datalogic devices. Thanks to a modular concept and a complete range of optional modules, all installations, configurations, and maintenance operations can be accomplished faster than ever.
– Dimensions: 128 x 138 x 62 mm
– Weight: 380 g.
– Power supply: 10 – 30 VDC
– Max consumption: 2.5W
– Operating temperature: 0 – 50°C
– Storage temperature: -20 – 70°C
– Humidity: 90% (non condensing)
– IP65
– Shock resistance: EN 60068-2-27 30G; 11ms; 3 shocks on each axis
– Vibration resistance: EN 60068-2-6 1.5mm; 10 to 55 Hz; 2 hours on each axis
– Diagnose LEDs: Power On/Polarity Error, Trigger, IN2, OUT1, OUT2
– Communication protocol: Datalogic Application Driver (DAD Driver)
– Handshaking: Message fragmentation and flow control
– Address setting: HW Switches, Genius™, VisiSet™
– Exchange memory for i/o data: Up to 128 bytes
– Compatible with DS2100N, DS2400N, DS4800, DS6300, DS6400, DX6400, DS8100A, DX8200A, MATRIX-2000™, MATRIX 200™, MATRIX 400™
