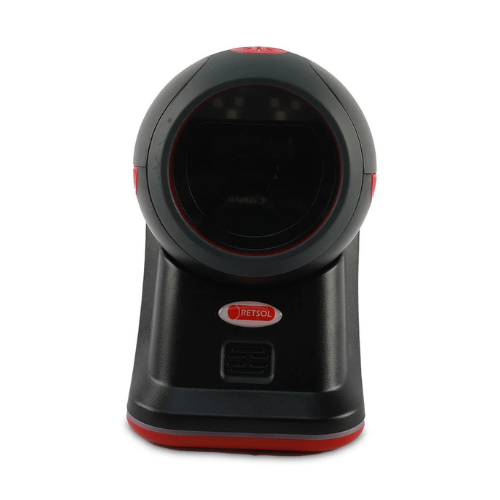

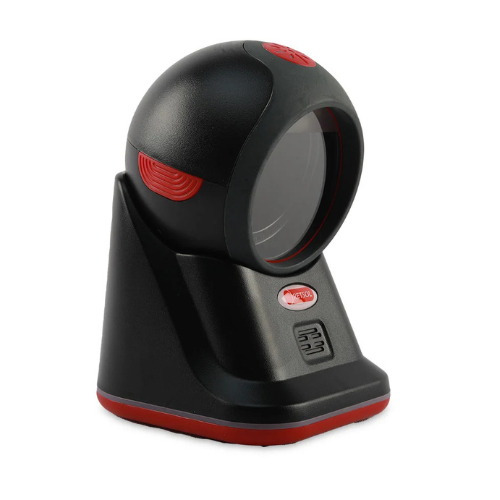

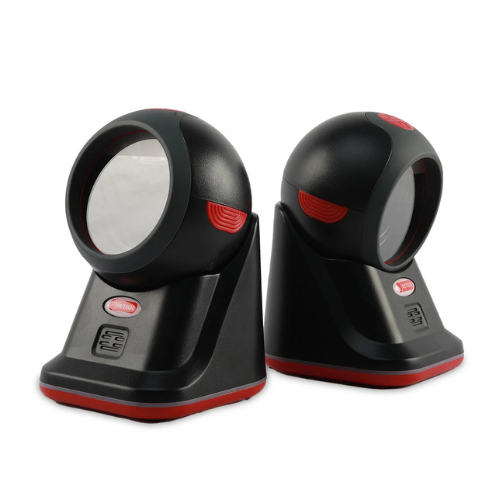

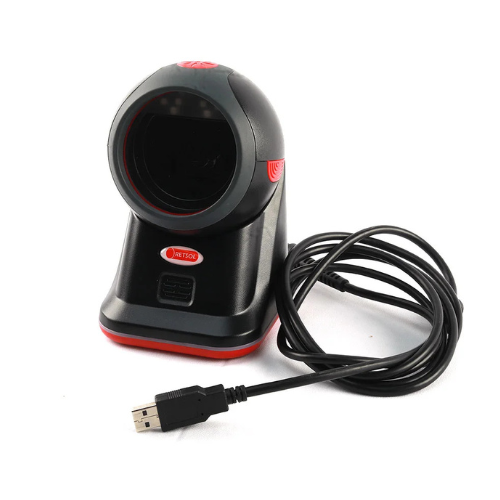

RETSOL PD3500 2D Barcode Presentation Scanner
- High quality CMOS image sensor
- 1280 x 800 image(pixels)
- More durable wire life
- Plug and play simple setup – Easy to use
- Reads all mainstream 1D/2D barcodes
- Built-in USB interface
- Large scan window
- Scan from screen feature
- 1 year warranty
Dispatch Details
– Ready to Dispatch in 1-7 Business Days
– Free Standard Shipping Included
– EMI Facility Available
Call for Price 99148 06616
The Retsol PD3500 Presentation Scanner combines advanced scanning technology, ergonomic design, versatile connectivity options, and user-friendly operation, providing businesses with a reliable and efficient solution for fast and accurate barcode scanning, enhancing productivity, and streamlining operations during point-of-sale transactions, inventory management, and various presentation scanning applications.
| Dimensions Weight | 96mm x 108mm x 150mm 294.4g |
| Voltage | 5V DC ± 5% |
| Current | 240mA (operating) |
| Material | ABS+PC |
| Cable Length | 2 Meter |
| Image (Pixels) | 1280 pixels (H) X 800 pixels (V) |
| Light Source | Red LED |
| Scan Mode | Automatic Induction Scanning |
| Motion Tolerance | 4 meters/second |
| Print Contrast | 20% minimum reflective difference |
| Minimum recognition accuracy | code 39 4mil |
| Recognition angle range | Turn ±360°, Elevation ±65°, Declination ±65° |
| Interface | USB(Drive-Free), RS232, USB-COM |
| Man-machine Interaction | Indicator light: Blue light – power indicator and reading prompt
Buzzer: Start prompt, read code prompt |
| System compatibility | Linux, Android, Windows XP/7/8/10 |
| Operating Temperature | 0°C ~ 50°C |
| Storage Temperature | -40°C ~ 70°C |
| Humidity | 0% ~ 95% Relative Humidity, (Non-Condensing/non-freezing) |
| Shock Specification | 1.5 meters drops to concrete |
